Symbol Plotting

Plotting methods mixed into the Symbol class: candlestick charts, trade visualizations, order book plots, market profile, and more.

Plotting methods for Symbol class.

Classes:

SymbolPlotting()

Plotting methods for Symbol.

class SymbolPlotting

Bases: object

Plotting methods for Symbol.

Methods:

set_plot_row([indicator_column, row_position])	Internal control formatting plots.
set_plot_color([indicator_column, color])	Internal control formatting plots.
set_plot_color_fill([indicator_column, ...])	Internal control formatting plots.
set_plot_filled_mode([indicator_column, ...])	Internal control formatting plots.
set_plot_axis_group([indicator_column, ...])	Internal control formatting plots.
set_plot_splitted_serie_couple([...])	Modify the control for splitted series in plots with colored area in two colors by relative position.
remove_plot_info_associated_columns(columns, ...)	Completely remove plot info for a column in main dataframe of klines.
remove_plot_info_for_column(column)	Remove plot info for a column in main dataframe of klines.
plot([width, height, ...])	Plots a candles figure for the object.

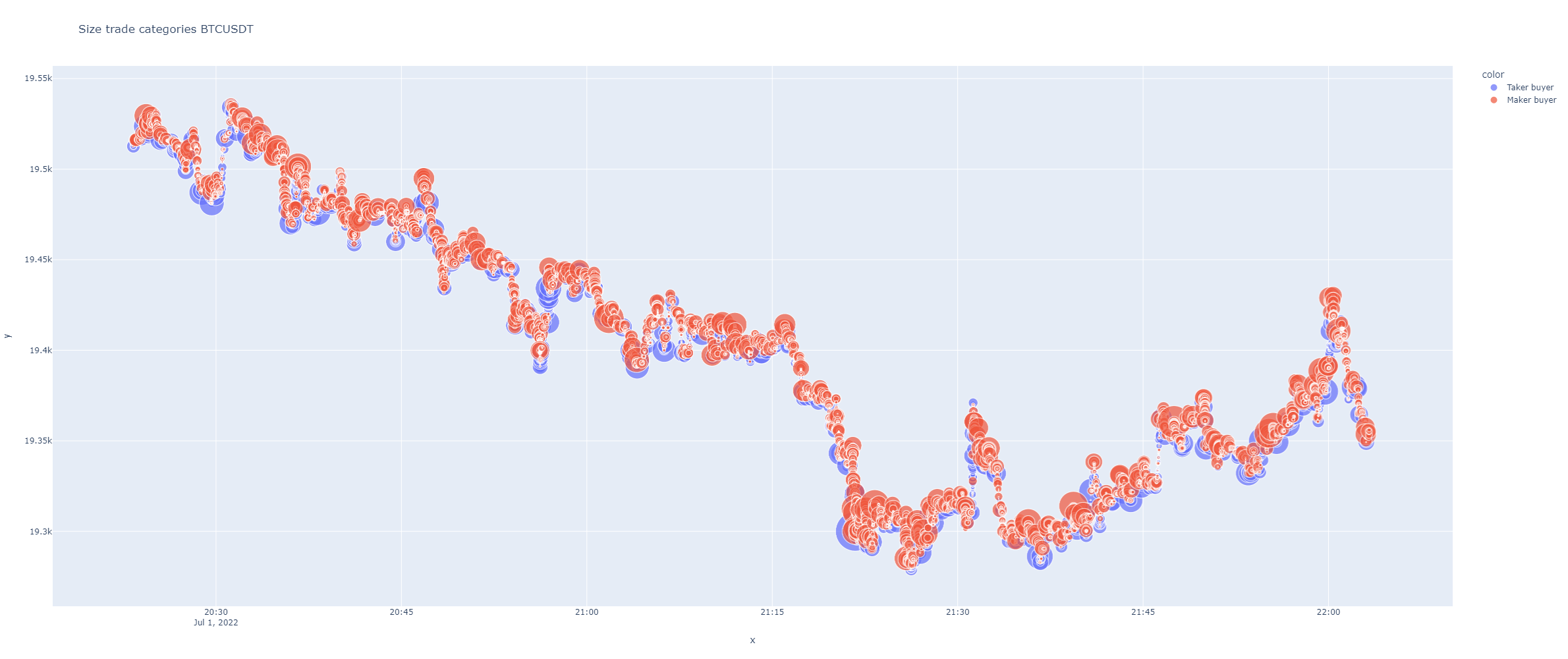

plot_agg_trades_size([max_size, height, ...])	It plots a time series graph plotting aggregated trades sized by quantity and color if taker or maker buyer.
plot_atomic_trades_size([max_size, height, ...])	It plots a time series graph plotting atomic trades sized by quantity and color if taker or maker buyer.
plot_reversal([min_height, min_reversal, ...])	Plots reversal candles.
set_plotting_volume_ma([window])	Set a window for plotting volume moving average on the candles plot when volumen bars are plotted.

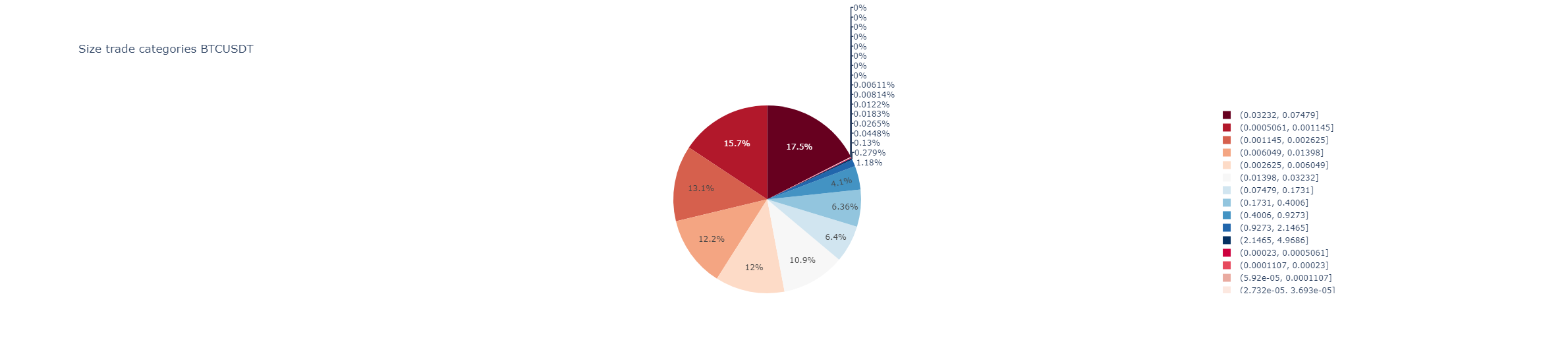

plot_trades_pie([categories, logarithmic, title])	Plots a pie chart.

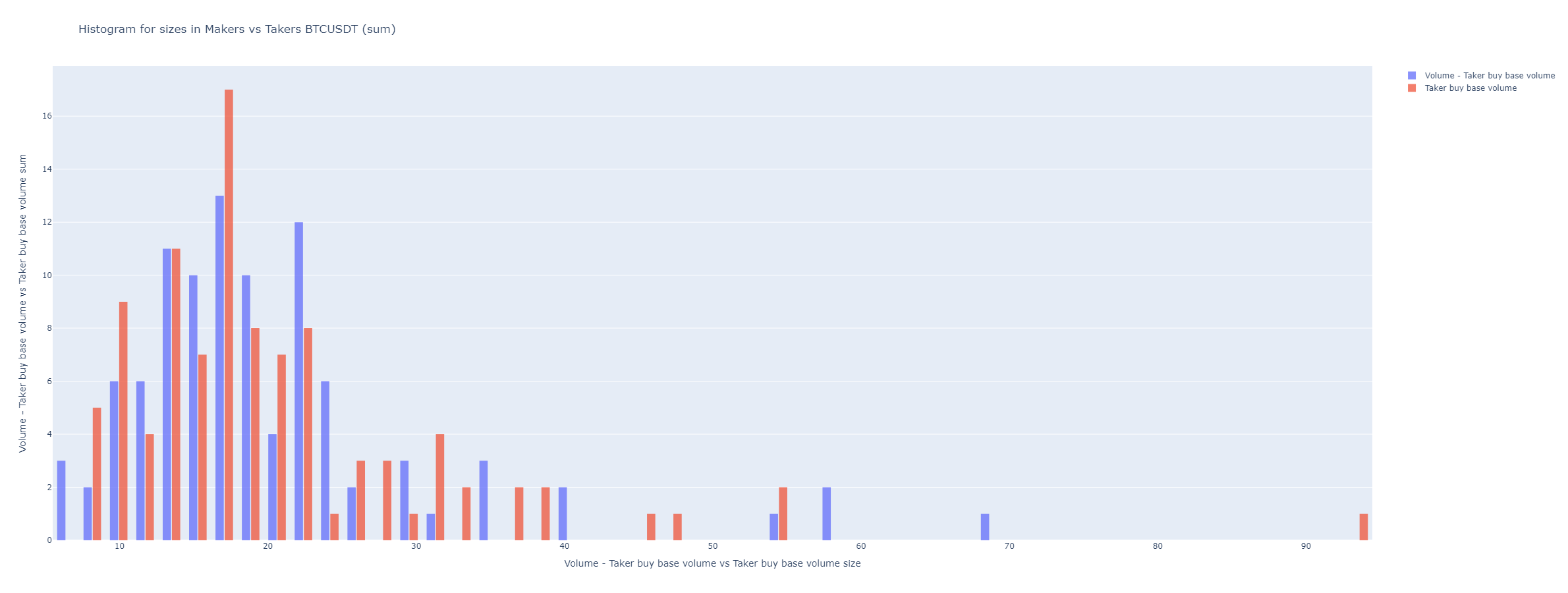

plot_aggression_sizes([bins, hist_funct, ...])	Binance fees can be cheaper for maker orders, many times when big traders, like whales, are operating .

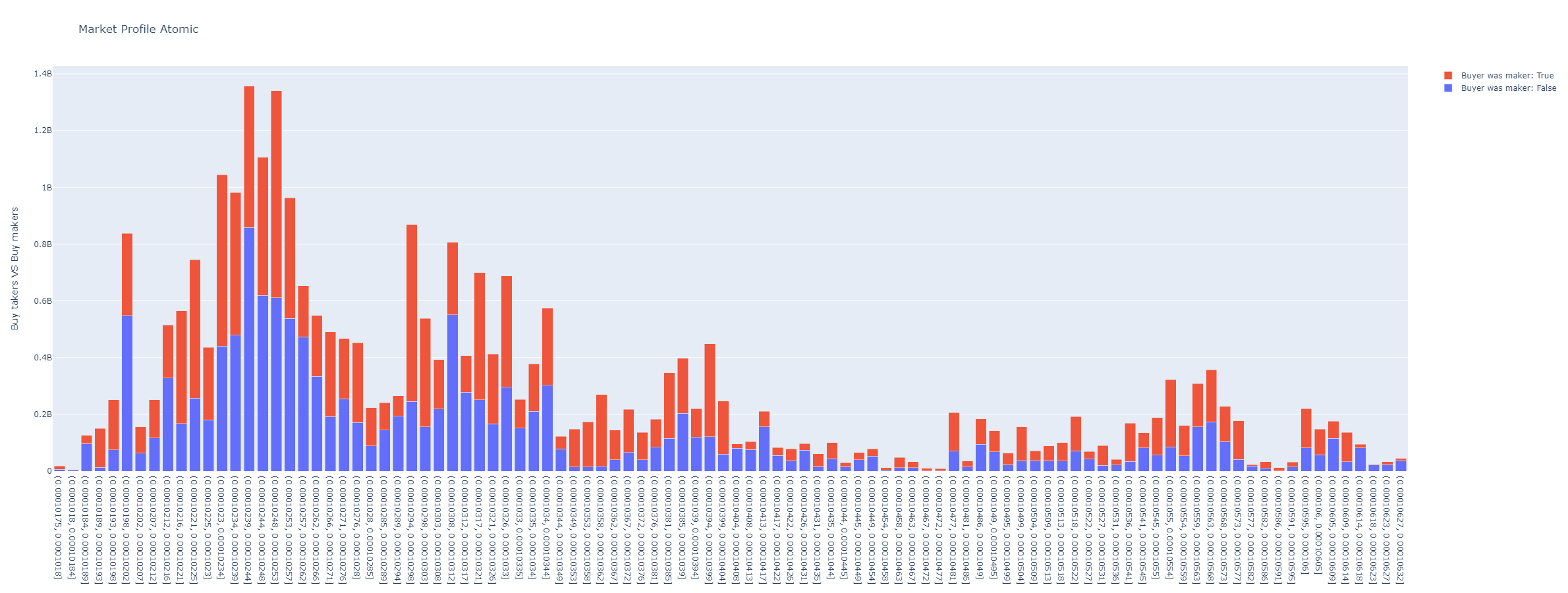

plot_market_profile([bins, hours, minutes, ...])	Plots volume histogram by prices segregated aggressive buyers from sellers.
plot_volume_profile([bins, value_area_pct, ...])	Volume Profile (VPVR): velas + histograma horizontal de volumen, con POC y Value Area.

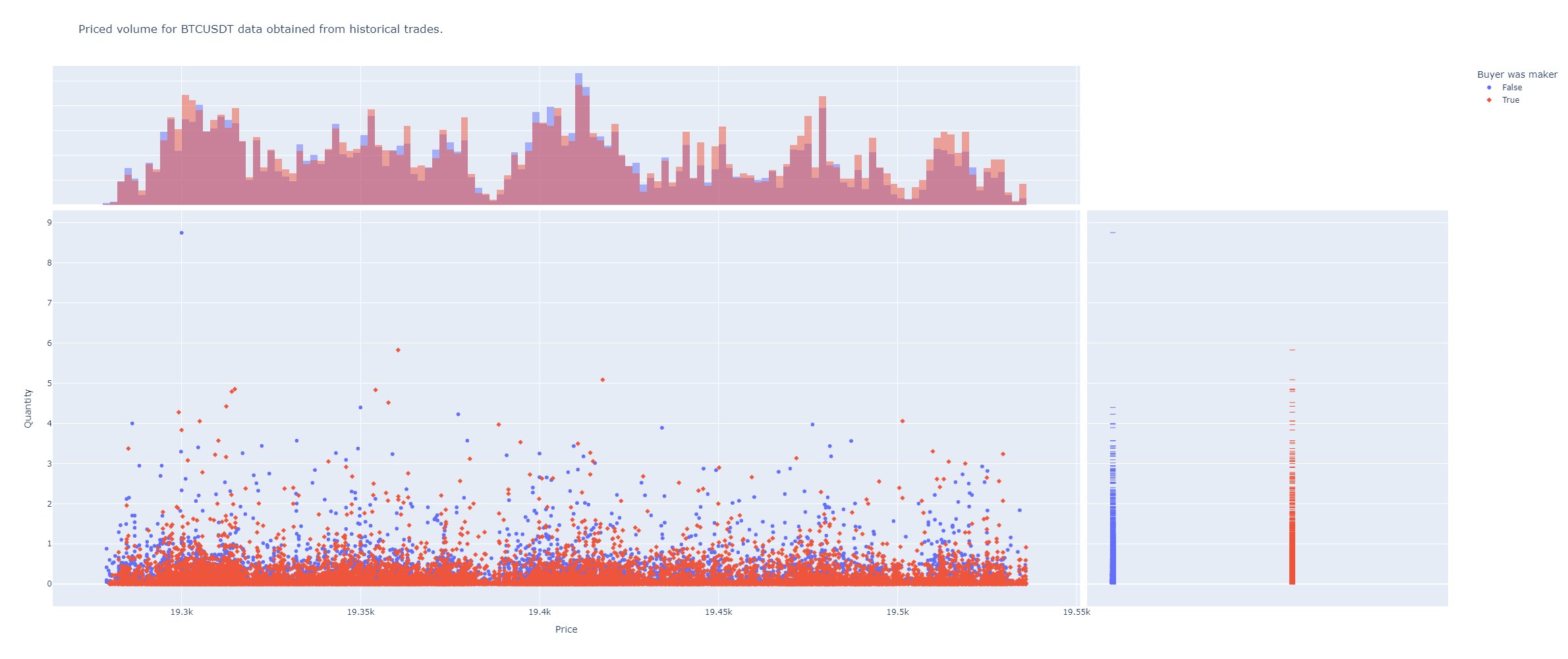

plot_trades_scatter([x, y, dot_symbol, ...])	A scatter plot showing each price level volume or trades.
plot_orderbook([accumulated, title, height, ...])	Plots orderbook depth.
plot_orderbook_density([x_col, color, bins, ...])	Plot a distribution plot for a dataframe column.

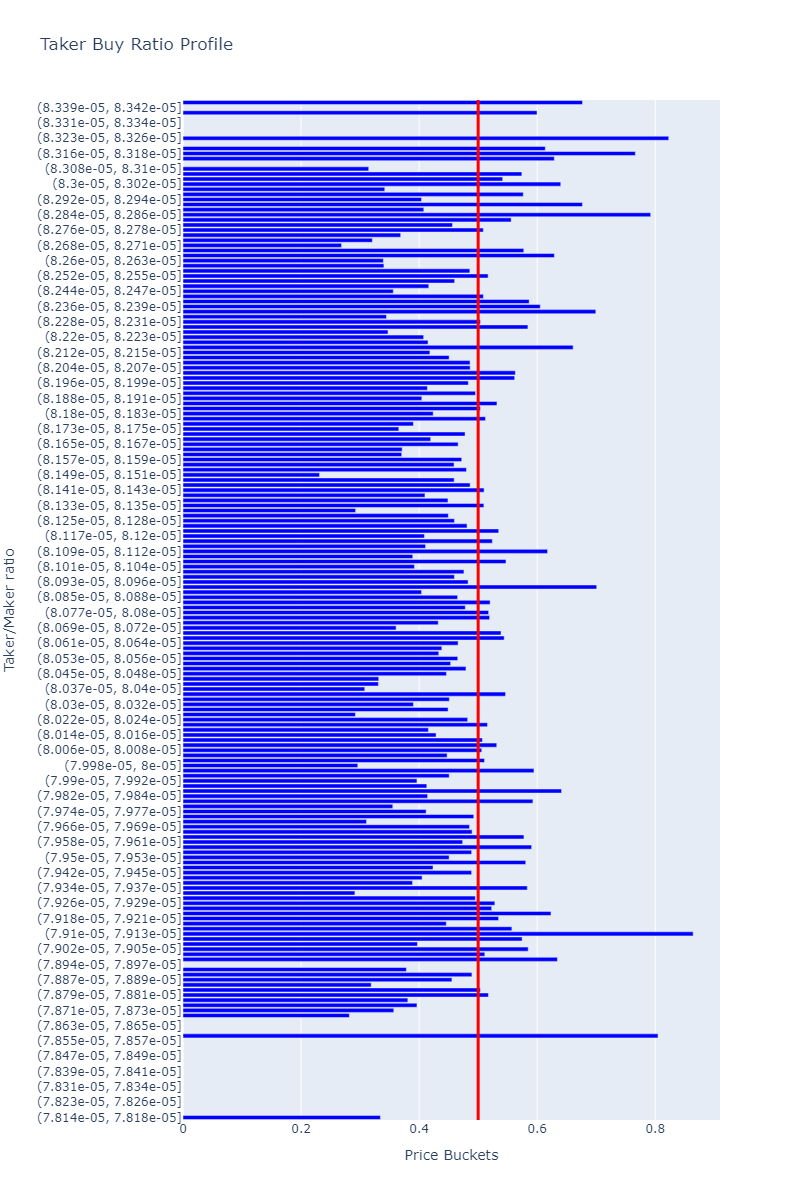

plot_taker_maker_ratio_profile([bins, ...])	Plots taker vs maker ratio profile.

set_plot_row(indicator_column: str = None, row_position: int = None) → dict

Internal control formatting plots. Can be used to change plot subplot row of an indicator.

Parameters:

• indicator_column (str) – column name

• row_position – reassign row_position to column name

Return dict:

columns with its assigned row_position in subplots when charts.

set_plot_color(indicator_column: str = None, color: int | str = None) → dict

Internal control formatting plots. Can be used to change plot color of an indicator.

Parameters:

• indicator_column (str) – column name

• color – reassign color to column name

Return dict:

columns with its assigned colors when charts.

set_plot_color_fill(indicator_column: str = None, color_fill: str | bool = None) → dict

Internal control formatting plots. Can be used to change plot color of an indicator.

Parameters:

• indicator_column (str) – column name

• color_fill – Color can be forced to fill to zero line. For transparent colors use rgba string code to define color. Example for transparent green ‘rgba(26,150,65,0.5)’ or transparent red ‘rgba(204,0,0,0.5)’

Return dict:

columns with its assigned colors when charts.

set_plot_filled_mode(indicator_column: str = None, fill_mode: str = None) → dict

Internal control formatting plots. Can be used to change plot filling mode for pairs of indicators when.

Parameters:

• indicator_column (str) – column name

• fill_mode – Fill mode for indicator. Color can be forced to fill to zero line with “tozeroy” or between two indicators in same axis group with “tonexty”.

Return dict:

columns with its assigned fill mode.

set_plot_axis_group(indicator_column: str = None, my_axis_group: str = None) → dict

Internal control formatting plots. Can be used to change plot filling mode for pairs of indicators when.

Parameters:

• indicator_column (str) – column name

• my_axis_group – Fill mode for indicator. Color can be forced to fill to zero line with “tozeroy” or between two indicators in same axis group with “tonexty”.

Return dict:

columns with its assigned fill mode.

set_plot_splitted_serie_couple(indicator_column_up: str = None, indicator_column_down: str = None, splitted_dfs: list = None, color_up: str = 'rgba(35, 152, 33, 0.5)', color_down: str = 'rgba(245, 63, 39, 0.5)') → dict

Modify the control for splitted series in plots with colored area in two colors by relative position.

If no params passed, then returns dict actual contents.

Parameters:

• indicator_column_up (str) – An existing column from a BinPan Symbol’s class dataframe to plot as up serie (green color).

• indicator_column_down (str) – An existing column from a BinPan Symbol’s class dataframe to plot as down serie (red clor).

• splitted_dfs (tuple) – A list of pairs of a splitted dataframe by two columns.

• color_up – An rgba formatted color: https://rgbacolorpicker.com/

• color_down – An rgba formatted color: https://rgbacolorpicker.com/

Return dict:

A dictionary with auxiliar data about plot areas with two colours by relative position.

remove_plot_info_associated_columns(columns: list, row_level: str) → list

Completely remove plot info for a column in main dataframe of klines.

Parameters:

• columns (list) – List of columns to be deleted.

• row_level (str) – Position of columns to be deleted for a row.

remove_plot_info_for_column(column: str) → None

Remove plot info for a column in main dataframe of klines. :param column:

plot(width: int = 1800, height: int = 1000, candles_ta_height_ratio: float = 0.75, volume: bool = True, title: str = None, yaxis_title: str = 'Price', overlapped_indicators: list = None, priced_actions_col: str = 'Close', actions_col: str = None, marker_labels: dict = None, markers: list = None, marker_colors: list = None, priced_markers: list = None, background_color=None, zoom_start_idx=None, zoom_end_idx=None, support_lines: list = None, support_lines_color: str = 'darkblue', resistance_lines: list = None, resistance_lines_color: str = 'darkred', date: str = None, date_radio: int = 20, show: bool = True, image_path: str = None) → str | None

Plots a candles figure for the object.

Also plots any other technical indicator grabbed.

Parameters:

• width (int) – Width of the plot.

• height (int) – Height of the plot.

• candles_ta_height_ratio (float) – Proportion between candles and the other indicators. Not considering overlap ones in the candles plot.

• volume (bool) – Plots volume.

• title (str) – A tittle for the plot.

• yaxis_title (str) – A title for the y axis.

• overlapped_indicators (list) – Can declare as overlap in the candles plot some column.

• priced_actions_col (str) – Priced actions to plot annotations over the candles, like buy, sell, etc. Under developing.

• actions_col (str) – A column containing actions like buy or sell. Under developing.

• marker_labels (dict) – Names for the annotations instead of the price. For ‘buy’ tags and ‘sell’ tags. Default is {‘buy’: 1, ‘sell’: -1}

• markers (list) – Plotly marker type. Usually, if referenced by number will be a not filled mark and using string name will be a color filled one. Check plotly info: https://plotly.com/python/marker-style/

• marker_colors (list) – Colors of the annotations.

• priced_markers (list) – Explicit operation markers to overlay on exact points: a list of dicts {'time', 'price', 'side', 'label'?}. side ‘buy’ draws a green ▲ (label below), otherwise a red ▼ (label above). time is a positional candle index (int) or a timestamp (snapped to the nearest candle); price is the exact y level. Compatible with support/resistance lines and action columns (they overlay together).

• background_color (str) – Sets background color. Select a valid plotly color name.

• zoom_start_idx (int) – It can zoom to an index interval.

• zoom_end_idx (int) – It can zoom to an index interval.

• support_lines (list) – A list of prices to plot horizontal lines in the candles plot for supports or any other level.

• support_lines_color (str) – A color for horizontal lines, ‘darkblue’ is by default.

• resistance_lines (list) – A list of prices to plot horizontal lines in the candles plot for resistances or any other level.

• resistance_lines_color (str) – A color for horizontal lines, ‘darkred’ is by default.

• date (str) – A date in string format to plot a zoom of a radio of klines up and down in time. Useful to inspect dates. Incompatible with zoom_start_idx and zoom_end_idx. Strings formatted as “2022-05-11 06:45:42”

• date_radio (str) – A radio in klines to plot a zoom around a date.

plot_agg_trades_size(max_size: int = 60, height: int = 1000, logarithmic: bool = False, overlap_prices: bool = True, group_big_data: int = None, shifted: int = 1, title: str = None, size_column: str = 'Quantity', width: int = None, horizontal_lines: list = None, show: bool = True, image_path: str = None) → str | None

It plots a time series graph plotting aggregated trades sized by quantity and color if taker or maker buyer.

Parameters:

• max_size (int) – Max size for the markers. Default is 60. Useful to show whales operating.

• height (int) – Default is 1000.

• logarithmic (bool) – If logarithmic, then “y” axis scale is shown in logarithmic scale.

• group_big_data (int) – Deprecated, ignored. Kept for backward compatibility.

• shifted (bool) – If True, shifts prices to plot klines one step to the right, that’s more natural to see trades action in price.

• overlap_prices (bool) – If True, plots overlap line with High and Low prices.

• title – Graph title.

plot_atomic_trades_size(max_size: int = 60, height: int = 1000, logarithmic: bool = False, overlap_prices: bool = True, group_big_data: int = None, shifted: int = 1, title: str = None, size_column: str = 'Quantity', width: int = None, horizontal_lines: list = None, show: bool = True, image_path: str = None) → str | None

It plots a time series graph plotting atomic trades sized by quantity and color if taker or maker buyer.

Parameters:

• max_size (int) – Max size for the markers. Default is 60. Useful to show whales operating.

• height (int) – Default is 1000.

• logarithmic (bool) – If logarithmic, then “y” axis scale is shown in logarithmic scale.

• group_big_data (int) – Deprecated, ignored. Kept for backward compatibility.

• shifted (bool) – If True, shifts prices to plot klines one step to the right, that’s more natural to see trades action in price.

• overlap_prices (bool) – If True, plots overlap line with High and Low prices.

• title – Graph title.

plot_reversal(min_height: int = None, min_reversal: int = None, text_index: bool = True, from_atomic: bool = False, **kwargs) → str | None

Plots reversal candles. It requires aggregated or atomic trades fetched previously.

BinPan manages aggregated trades from binance API.

Parameters:

• min_height (int) – It defaults to previous set. Can be reset when charts.

• min_reversal – It defaults to previous set. Can be reset when charts.

• text_index (bool) – If True, plots klines equally spaced. This allows to plot volume.

• from_atomic (bool) – If True, klines are obtained from atomic trades.

Returns:

Example:

import binpan

 ltc = binpan.Symbol(symbol='ltcbtc',
                     tick_interval='5m',
                     time_zone = 'Europe/Madrid',
                     time_index = True,
                     closed = True,
                     hours=5)
ltc.get_trades()
ltc.get_reversal_candles()
ltc.plot_reversal()

set_plotting_volume_ma(window: int = 21) → None

Set a window for plotting volume moving average on the candles plot when volumen bars are plotted.

Parameters:

window (int) – A window for the moving average.

plot_trades_pie(categories: int = 25, logarithmic=True, title: str = None) → str | None

Plots a pie chart. Useful profiling size of trades. Size can be distributed in a logarithmic scale.

Parameters:

• categories – How many groups of sizes.

• logarithmic – Logarithmic scale to show more small sizes.

• title – A title for the plot.

plot_aggression_sizes(bins=50, hist_funct='sum', height=900, from_trades=False, title: str = None, total_volume_column: str = None, partial_vol_column: str = None, **kwargs_update_layout) → str | None

Binance fees can be cheaper for maker orders, many times when big traders, like whales, are operating . Showing what are doing makers.

It shows which kind of volume or trades came from, aggressive_sellers or aggressive_byers.

Can be useful finding support and resistance zones.

Parameters:

• bins – How many bars.

• hist_funct – The way graph data is showed. It can be ‘mean’, ‘sum’, ‘percent’, ‘probability’, ‘density’, or ‘probability density’

• height – Height of the graph.

• from_trades – Requieres grabbing trades before.

• title – A title.

• total_volume_column – The column with the total volume. It defaults automatically.

• partial_vol_column – The column with the partial volume. It defaults automatically. API shows maker or taker separated volumes.

• kwargs_update_layout – Optional

plot_market_profile(bins: int = 100, hours: int = None, minutes: int = None, startTime: int | str = None, endTime: int | str = None, height=900, from_agg_trades=False, from_atomic_trades=False, title: str = None, time_zone: str = None, **kwargs_update_layout) → str | None

Plots volume histogram by prices segregated aggressive buyers from sellers.

Parameters:

• bins (int) – How many bars.

• hours (int) – If passed, it use just last passed hours for the plot.

• minutes (int) – If passed, it use just last passed minutes for the plot.

• startTime (int | str) – If passed, it use just from the timestamp or date in format (%Y-%m-%d %H:%M:%S: 2022-05-11 06:45:42)) for the plot.

• endTime (int | str) – If passed, it use just until the timestamp or date in format (%Y-%m-%d %H:%M:%S: 2022-05-11 06:45:42)) for the plot.

• height – Height of the graph.

• from_agg_trades – Requieres grabbing aggregated trades before.

• from_atomic_trades – Requieres grabbing atomic trades before.

• title – A title.

• time_zone (str) – A time zone for time index conversion. Example: “Europe/Madrid”

• kwargs_update_layout – Optional

plot_volume_profile(bins: int = 50, value_area_pct: float = 0.7, from_agg_trades: bool = False, from_atomic_trades: bool = False, hours: int = None, minutes: int = None, startTime: int | str = None, endTime: int | str = None, time_zone: str = None, title: str = None, height: int = 900, width: int = None, horizontal_lines: list = None, priced_markers: list = None, show: bool = True, image_path: str = None) → str | None

Volume Profile (VPVR): velas + histograma horizontal de volumen, con POC y Value Area.

Dibuja las velas a la izquierda y, compartiendo el eje de precio, un histograma horizontal del volumen por nivel a la derecha. Resalta la Value Area, traza el POC y marca los LVN (huecos por donde el precio viaja rapido). Util para ver imanes y soportes/resistencias por aceptacion. Los numeros (POC/VAH/VAL/HVN/LVN) se obtienen con volume_profile().

Parameters:

• bins (int) – numero de niveles del histograma. Default 50.

• value_area_pct (float) – fraccion del volumen dentro de la Value Area. Default 0.70.

• from_agg_trades (bool) – perfil fino desde aggregated trades (requiere get_agg_trades() antes).

• from_atomic_trades (bool) – perfil desde atomic trades (requiere get_atomic_trades() antes).

• hours (int) – si se pasa, solo las ultimas ‘hours’ horas.

• minutes (int) – si se pasa, solo los ultimos ‘minutes’ minutos.

• startTime – timestamp/fecha de inicio (rango fijo).

• endTime – timestamp/fecha de fin (rango fijo).

• time_zone (str) – zona horaria para el indice temporal.

• title (str) – titulo del grafico.

• height (int) – alto px. Default 900.

• width (int) – ancho px. Si None, autosize.

• horizontal_lines (list) – precios extra (entrada/stop/TP) como lineas discontinuas.

• priced_markers (list) – marcadores de operacion (▲ compra / ▼ venta) en puntos exactos sobre las velas: lista de {'time', 'price', 'side', 'label'?} (ver set_price_markers).

• show (bool) – si True (default) abre la figura interactiva; False para uso headless/servidor.

• image_path (str) – ruta del PNG de salida. Por defecto last_plot.png en el cwd.

Returns:

ruta absoluta de la imagen exportada, o None si falla.

plot_trades_scatter(x: str = None, y: str = None, dot_symbol='Buyer was maker', color: str = None, marginal=True, from_trades=True, height=1000, color_referenced_to_y=True, **kwargs) → str | None

A scatter plot showing each price level volume or trades.

It can be useful finding support and resistance zones.

Parameters:

• dot_symbol – Column with discrete values to assign different symbols for the plot marks.

• x – Name of the column with prices. From trades or candles.

• y – Name of the column with sizes. From trades or candles.

• color – Column with values to use in color scale.

• marginal – Show or not lateral plots.

• from_trades – Uses trades instead of candles. Useful to avoid grabbing very long time intervals. Result should be similar.

• height – Height of the plot.

• color_referenced_to_y – Scales color in y axis.

• kwargs – Optional plotly args.

plot_orderbook(accumulated=True, title='Depth orderbook plot', height=800, plot_y='Quantity', **kwargs) → str | None

Plots orderbook depth.

plot_orderbook_density(x_col='Price', color='Side', bins=300, histnorm: str = 'density', height: int = 800, title: str = None, **update_layout_kwargs) → str | None

Plot a distribution plot for a dataframe column. Plots line for kernel distribution.

Parameters:

• x_col (str) – Column name for x-axis data.

• color (str) – Column name with tags or any values for using as color scale.

• bins (int) – Columns in histogram.

• histnorm (str) – One of ‘percent’, ‘probability’, ‘density’, or ‘probability density’ from plotly express documentation. https://plotly.github.io/plotly.py-docs/generated/plotly.express.histogram.html

• height (int) – Plot sizing.

• title (str) – A title string

plot_taker_maker_ratio_profile(bins: int = 100, hours: int = None, minutes: int = None, startTime: int | str = None, endTime: int | str = None, from_agg_trades=False, from_atomic_trades=False, time_zone: str = None, title: str = 'Taker Buy Ratio Profile', height=1200, width=800, **kwargs_update_layout) → str

Plots taker vs maker ratio profile.

Parameters:

• bins (int) – How many bars.

• hours (int) – If passed, it use just last passed hours for the plot.

• minutes (int) – If passed, it use just last passed minutes for the plot.

• startTime (int | str) – If passed, it use just from the timestamp or date in format (%Y-%m-%d %H:%M:%S: 2022-05-11 06:45:42)) for the plot.

• endTime (int | str) – If passed, it use just until the timestamp or date in format (%Y-%m-%d %H:%M:%S: 2022-05-11 06:45:42)) for the plot.

• height – Height of the graph.

• width – Width of the graph.

• from_agg_trades – Requieres grabbing aggregated trades before.

• from_atomic_trades – Requieres grabbing atomic trades before.

• title – A title.

• time_zone (str) – A time zone for time index conversion. Example: “Europe/Madrid”

• kwargs_update_layout – Optional
